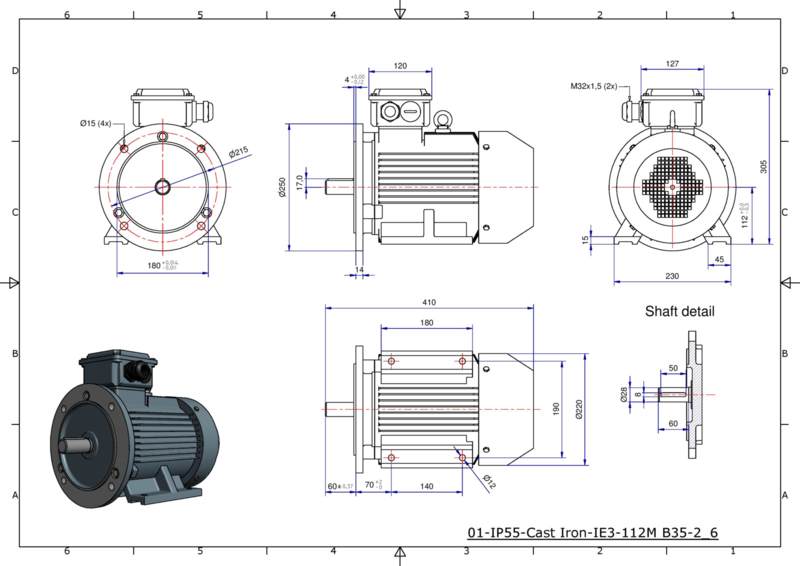

OMT1-IE3 112M2 4kW (3000rpm) 400/690V 50Hz B3/B5/B35
Overzicht

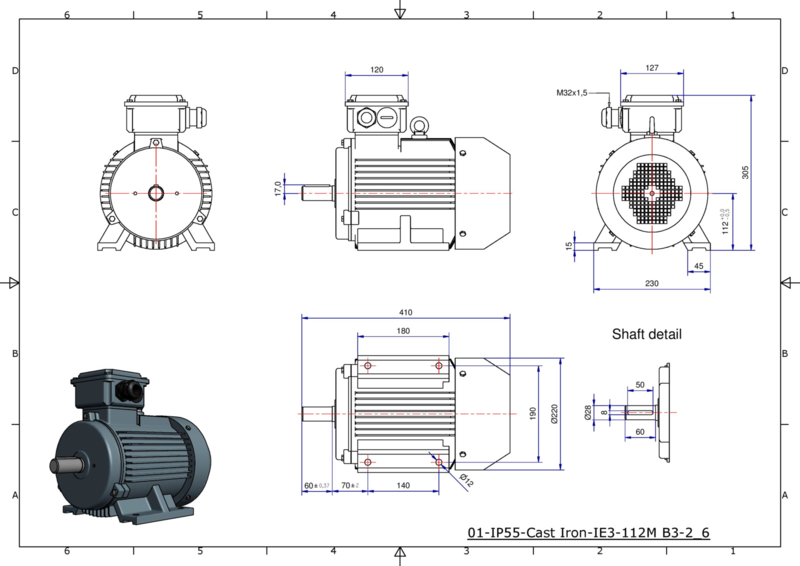

OMT1-IE3 112M2 4kW 400/690V 50Hz B3
Iso F-B / IP55 / PTC150℃ / Asmaat 28j6 / Ral 7031
| Bouwgrootte: | 112mm |
| Vermogen: | 4kW |
| Frequentie: | 50Hz |
| Polental: | 2 P |
| Rotatiesnelheid: | 2860 RPM |
| Slip: | 4,67% |
| Voltage: | 400/690V |
| Aansluiting: | △/Y |
| Stroomsterkte: | 7,00/4,04 A |
| Rotor voltage: | |
| Rotor connectie: | |
| Rotor stroom: | |
| Rotorblok stroom (Ia/In): | 750% |
| Stroom onbelast: | |
| Koppel: | 13Nm |
| Rotorblok koppel (Ma/Mn): | 220% |
| Koppel limiet (Ma/Mn): | 250% |
| Isolatieklasse: | F | |
| Temperatuur: | 80K | |
| Service factor: | 1 | |
| Duty: | S1 | |
| Omg. temp.: | -20~40°C | |
| Hoogte: | 1000m | |
| Bescherming: | IP55 | |
| Koeling: | IC411 | |
| Montage: | B3,B35,V1,B14L,B14S,B34L,B34S,B5 | |
| Vibratie: | 2,8mm/s | |
| Gewicht: | 43kg | |
| Inertia moment: | 0,0065kg/m2 | |
| Geluidsniveau: | 67 dB(A) | |
| Rotatierichting: | BOTH | |
| Start | DIRECT ON LINE | |
| Koppel: | DIRECT | |
| Belastcurve: | PARABOLIC CURVE |
