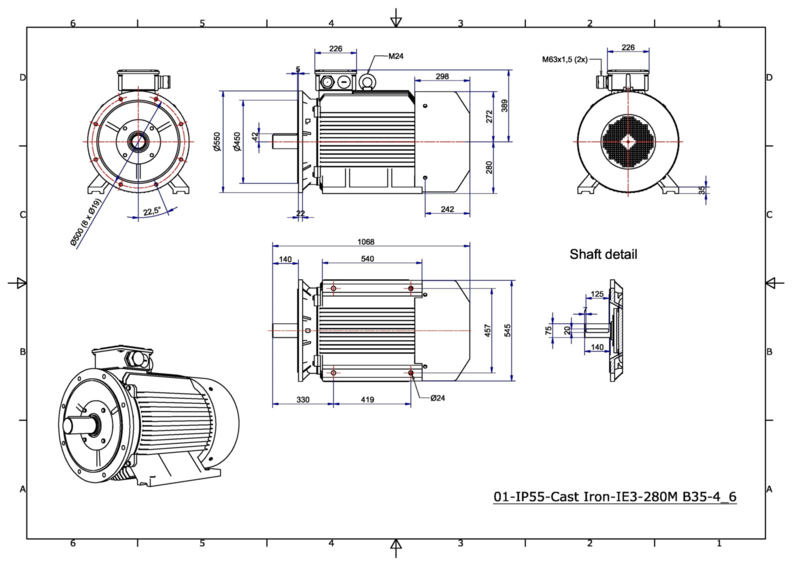

OMT1-IE3 280M6 55kW 400/690V 50Hz B3
Iso F-B / IP55 / PTC150℃ / Shaft 75m6 / Ral 7031
| Bouwgrootte: |
280mm |
| Vermogen: |
55kW |
| Frequentie: |
50Hz |
| Polental: |
6 P |
| Rotatiesnelheid: |
990 RPM |
| Slip: |
1% |
| Voltage: |
400/690V |
| Aansluiting: |
△/Y |
| Stroomsterkte: |
100,00/57,74 A |
| Rotor voltage: |
|
| Rotor connectie: |
|
| Rotor stroom: |
|
| Rotorblok stroom (Ia/In): |
780% |
| Stroom onbelast: |
|
| Koppel: |
531Nm |
| Rotorblok koppel (Ma/Mn): |
322% |
| Koppel limiet (Ma/Mn): |
398% |
| |
Isolatieklasse: |
F |
| |
Temperatuur: |
80K |
| |
Service factor: |
1 |
| |
Duty: |
S1 |
| |
Omg. temp.: |
-20~40°C |
| |
Hoogte: |
1000m |
| |
Bescherming: |
IP55 |
| |
Koeling: |
IC411 |
| |
Montage: |
B3,B35,V1 |
| |
Vibratie: |
2,8mm/s |
| |
Gewicht: |
550kg |
| |
Inertia moment: |
2,7975kg/m2 |
| |
Geluidsniveau: |
70 dB(A) |
| |
Rotatierichting: |
BOTH |
| |
Start |
DIRECT ON LINE |
| |
Koppel: |
DIRECT |
| |
Belastcurve: |
PARABOLIC CURVE |
